          Chamber Filter Press

          Home>Product>Filter press>Chamber Filter Press
          2.2Kw 1000X1000 Chinese High Pressure Chamber Filter Press for Mining Application

          2.2Kw 1000X1000 Chinese High Pressure Chamber Filter Press for Mining Application

          Product descriptions from the supplierProducts DescriptionChamber Filter PressThe program-controlled automatic hydraulic chamber filter press is an intermittent

          Share To:

          Description

          Product descriptions from the supplier

          Products Description

          2.2Kw 1000X1000 Chinese High Pressure Chamber Filter Press for Mining Application

          Chamber Filter Press

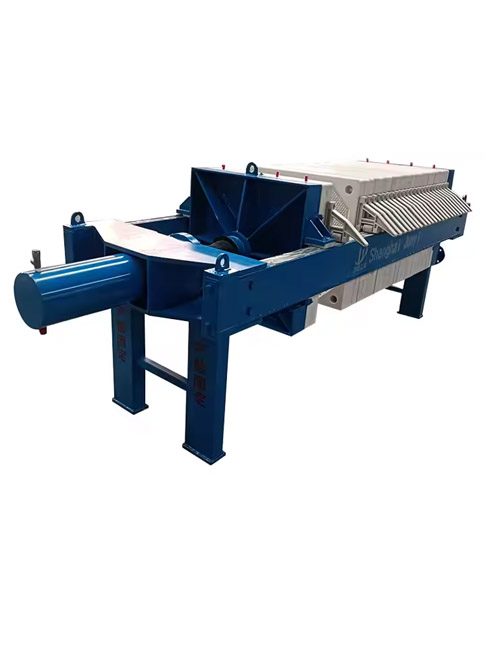

          The program-controlled automatic hydraulic chamber filter press is an intermittent solid liquid separation equipment. It is designed and manufactured by integrating mechanics and electricity. It has a reasonable structure and is simple and convenient to operate process. Applied material: Wastewater treatment, Food&beverage, Chemicals, Mining, Medicine, Ceramic slurry, Metallurgy, print&dyeing etc.

          Features

          1, Plate filter press for flexible adjustment of filter area, can increase or decrease the number of filter area by adjusting the
          frame.
          2, Plate and frame filter press typically covers 10-15 square meters, saving work space.
          3, Advanced structural design, a wide range.
          4, Easy to manage, easy maintenance.
          5, Low noise, low power consumption, green.

          Accessories

          2.2Kw 1000X1000 Chinese High Pressure Chamber Filter Press for Mining Application2.2Kw 1000X1000 Chinese High Pressure Chamber Filter Press for Mining Application

          Product Overview

          2.2Kw 1000X1000 Chinese High Pressure Chamber Filter Press for Mining Application

          1. The oil cylinder pushes the clamping plate to clamp each filter plate.

          2. When the pressure reaches 20Mpa, the clamping process stops and enters the pressure holding state.

          3. Open the feed valve, and the material enters each filter chamber from the thrust plate material port.

          4. Solid particles are trapped in the filter chamber to form a filter cake.

          5. The liquid is discharged from the machine through the filter holes formed by each filter plate.

          6. After the filtration is completed, the oil cylinder is retracted and the clamping plate is released.

          7. The flip plate is opened to the mud receiving state.

          8. The plate pulling trolley pulls the filter plates open one by one, and the filter cake falls into the mud storage hopper.

          Product Paramenters

          Specification

          Filter Area

          Filter Chamber Volume

          Filter Plate Size

          Cake Thickness

          XAMY4/450-30

          4

          60





          450

          X

          450







          30

          XAMY8/450-30

          8

          120

          XAMY10/450-30

          10

          150

          XAMY12/450-30

          12

          180

          XAMY16/450-30

          16

          240

          XAMY15/630-U

          15

          225



          630

          X

          630





          30

          XAMY20/630-U

          20

          300

          XAMY30/630-U

          30

          450

          XAMY40/630-U

          40

          600



          Company Profile

          2.2Kw 1000X1000 Chinese High Pressure Chamber Filter Press for Mining Application

          Shanghai Junyi Filter Equipment Co., Ltd. specializes in the manufacturing and sales of filter equipment. We have professional and experienced technical team, production team and sales team, provide good service before and after sales. Adhering to the modern management mode, we always make the precision manufacturing, explore new opportunity and make the innovation.

          2.2Kw 1000X1000 Chinese High Pressure Chamber Filter Press for Mining Application

          After years of hard exploration, we has established a complete and effective service system and built an experienced service team, which not only provides customers with site planning and drawing of the layout and flow chart, but also can send our technical personnel to the site to guide the installation and commission for our customers.



          We have a very strict and complete quality control system, which promises that goods we produced are always of the best quality, the enough inspectors to ensure that each product can meet the quality requirements of customers. We always final Inspection before shipment.

          2.2Kw 1000X1000 Chinese High Pressure Chamber Filter Press for Mining Application

          We produce more than 200 different models of the filter. The main products are the Press Filter / Bag Filter Housing / Automatic self cleaning filter / Basket filter / Magnetic filter / Candle filter / Leaf filter / Cartridge filter housing / Filter Plate / Filter Cloth/ Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc. These equipment are widely used for the solid-liquid separation process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.

          Packing & Shipping

          2.2Kw 1000X1000 Chinese High Pressure Chamber Filter Press for Mining Application

          FAQ

          Q: Are you manufacturer?

          A: Yes. We are experienced manufacturer of filter equipment.



          Q:What products you provide?

          A: We produce more than 200 different models of the filter. The main products are the Press Filter/Bag Filter Housing/Automatic self cleaning filter/Basket filter/Magnetic filter/ Candle filter/Leaf filter/Cartridge filter housing/Filter Plate/Filter Cloth/ Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc.


          Q: How to select the type you needed?

          A: We will ask you some information: solid liquid kind, usage, flow rate, solid content
          percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.



          Q.Is it easy to operate for the new user ?

          A: Yes. We offer you manual book and operating video. When you have any questions during using, we will answer you within 24 hours. For large projects, we can also send our engineers to your site for commissioning and training.



          Q: What's MOQ?

          A: 1 PCS.



          Q: Do you accept OEM?

          A: Yes.



          Q:What's the payment terms ?

          A: T/T, Western Union, L/C , Alibaba trade order or others. Generally 50% in advance, 50% before shipping.



          Q:Quality Warranty.

          A:12 months after the installation and commission or 18 months after it has been delivered to the site of the customer.
