Product Overview

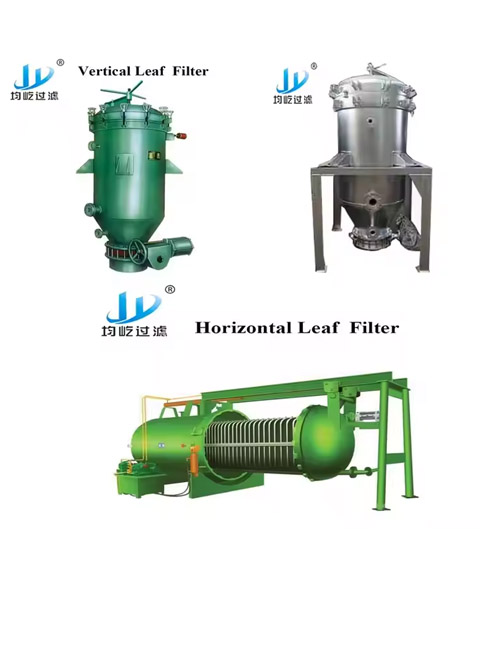

Leaf Filter

Leaf Filter (Blade filter) refers to the filter device suitable for the filtration and separation process of decolorized oil filtration, clarification filtration and crystal in the production of oil, chemical industry, medicine and other industries. The leaf filter (blade filter) solves the problems of difficult filtration and slag discharge of machine pressed crude oil such as cottonseed, rapeseed and castor in the oil industry.

Features of Leaf Filter

1.Reasonable structure,covering less area.

2.Efficient filtration,higher precision,lower loss of material (no need the filter cloth,filter paper or paper element,but only consume the filter aid)

3.Discharging the slag by automatic vibrating.Easy operation and reduce the labor intensity.

4.The mesh is made of stainless steel.No need to be changed.The production can be continuous.



Product Details

Specification

Temperature :≤ 150 ℃ Working Pressure: Rated Pressure:0.1-0.4 Mpa Max Pressure:0.5 Mpa
Filtering Area（m2)	Filtering Area（m2)	Processing Capacity (T/h)			Volume of Tank	Weight of Main Part
		Oil	Resin	Drink
2	30	0.4-0.6	1-1.5	1-3	120	300
4	60	0.5-1.2	2-3	2-5	250	400
7	105	1-1.8	3-6	3-6	420	600
10	150	1.6-3	5-8	5-8	800	900
12	240	2-4	6-9	6-9	1000	1100
15	300	3-5	7-12	8-11	1300	1300
20	400	4-6	9-15	12-17	1680	1700
25	500	5-7	12-19	16-21	1900	2000
30	600	6-8	14-23	19-25	2300	2500
36	720	7-9	16-27	23-30	2650	3000
40	800	8-11	21-34	30-38	3000	3300
45	900	9-13	24-39	36-44	3200	3500
52	1040	10-15	27-45	42-51	3800	4000
60	1200	11-17	30-52	48-60	4500	4500
70	1400	12-19	36-60	56-78	5800	5500
80	1600	13-21	40-68	64-78	7200	6000
90	1800	14-23	43-72	68-82	7700	6500



Application

Wide Application of Vertical Leaf Filter
1.Oil industry: oil filter for decolorization, oil filter for dewaxing,oil filter for filtering the crude oil
2.Food industry: sugar, glucose, wine, fruit juice, soft drinks and so on
3.Chemical industry: petrochemical industry, inorganic chemicals, organic chemicals (used in the process of the crystals separated from the catalyst for a variety of filtering separation).
4.Environmental protection industry: rivers, lakes, water, sewage treatment station , water purification back to the swimming pool.

Company Profile

After years of hard exploration, we has 40---68 a complete and effective service system and built an experienced service team, which not only provides customers with site planning and drawing of the layout and flow chart, but also can send our technical personnel to the site to guide the installation and commission for our customers.



We have a very strict and complete quality control system, which promises that goods we produced are always of the best quality, the enough inspectors to ensure that each product can meet the quality requirements of customers. We always final Inspection before shipment.
