Product Overview

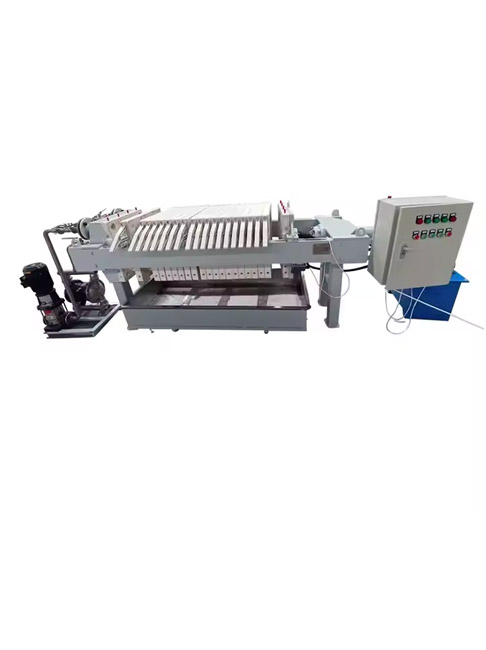

Fully automatic diaphragm filter press

Fully automatic diaphragm filter press is an efficient solid-liquid separation equipment, widely used in petroleum, chemical, pharmaceutical, paper, coal washing, food, building materials, ceramics, mining and various sewage treatment industries. ‌ It uses the integration of machine, electricity and hydraulic design and manufacture, reasonable structure, stable performance, simple and reliable operation, is the ideal equipment for solid-liquid separation ‌

FEATURES AT A GLANCE

1. Efficient filtration ‌ : the same number and size of the filter plate, the effective filtration area is 2 times that of the plate and frame filter press, and the filtration efficiency is high ‌. ‌

2. Good filtration effect ‌ : higher filtration pressure makes the cake liquid content is lower, the filtration effect is good ‌.

3‌. Strong durability ‌ : the pressure of each filter chamber is balanced, so that the filter plate is not easy to be damaged, durable ‌.

4‌. High degree of automation ‌ : pressing and pulling plate electronic control device to achieve automatic pressing and unloading, simple operation ‌. ‌

5. Wide range of adaptation ‌ : suitable for a variety of industries and materials, a wide range of applications ‌.

Structure and working principle

The surface of the filter plate is pitted and raised to support the filter cloth. There are holes in the center and corners of the filter plate, which constitute a complete channel after assembly, and can pass into the suspension, washing water and filtrate. The handles on both sides of the filter plate are supported on the beam, and the filter plate is pressed by the pressing device ‌.

Under the pressure of the feed pump, the material liquid that needs to be filtered is sent to the filter chamber, and the solid and liquid are separated through the filter medium (filter cloth). Solids form a filter residue on the filter cloth until the filter chamber is filled to form a filter cake. The filtrate flows through the filter cloth and along the groove of the filter plate to the lower liquid outlet channel and is discharged in a concentrated way. After filtration is completed, wash the filter residue with clean washing water, remove the filter cake, clean the filter cloth, and start the next working cycle ‌.

Products Description

PRODUCT SPECIFICATIONS

Company Profile

Shanghai Junyi Filter Equipment Co., Ltd. specializes in the manufacturing and sales of filter equipment. We have professional and experienced technical team, production team and sales team, provide good service before and after sales. Adhering to the modern management mode, we always make the precision manufacturing, explore new opportunity and make the innovation.
